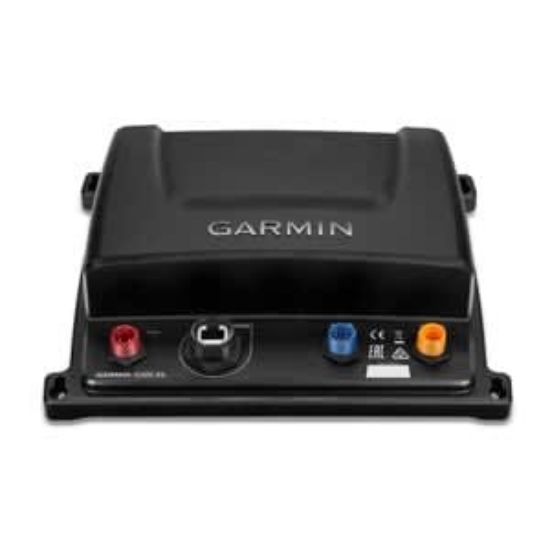

100115900 Garmin Sonar Sounder Module

The GSD 25 premium sonar module is a remote network solution that provides outstanding fishfinding and bottom tracking capabilities.
It offers dual-channel 1 kilo Watt CHIRP, plus Garmin CHIRP ClearVü ™ and Garmin CHIRP SideVü ™ sonar scanning for the clearest scanning images on the water.
The images sent to your compatible Garmin chartplotter have target details so clear and precise, you can actually distinguish between small and closely spaced fish at key fishing depths all the way down to 5,000 feet.
CHIRP is the most sophisticated sonar technology available for use by the fishing and boating public.
CHIRP is an acronym for Compressed High-Intensity Radiated Pulse.
What it means to you is much better target resolution, clarity and crispness than any other sonar system.
Having Garmin true dual 1 Kilo Watt CHIRP as your traditional sonar allows you to adjust CHIRP frequencies to low or medium, low or high, medium or high to further optimize your sonar performance.
Adding CHIRP technology to ClearVü and SideVü scanning sonar further enhances the resolution, target separation and clarity of the sonar images of fish and structure that pass below and to the sides of your boat.
Built-in to our new GPSMAP xsv combos and GSD 25 Premium Sonar Module, it uses 1 transducer for traditional CHIRP HD-ID sonar and CHIRP ClearVü and SideVü scanning sonar.

• Use For Superior Target Definition And Deep Water Performance
• 9.9 Inch Length x 7.6 Inch Width x 2.6 Inch Depth
• 50 kHz Frequency
• 27 Watt
• 10 To 35 Input Volt
• 5 Degree Fahrenheit To 158 Degree Fahrenheit Operating Temperature
• Polycarbonate
• IPX7 Rating Waterproof
• With Right Angle Power Cable/ Right Angle Network Cable/ Mounting Hardware

• The GSD 25 premium sonar module is a remote network solution that provides outstanding fishfinding and bottom tracking capabilities.
  It offers dual-channel 1 kilo Watt CHIRP, plus Garmin CHIRP ClearVü ™ and Garmin CHIRP SideVü ™ sonar scanning for
